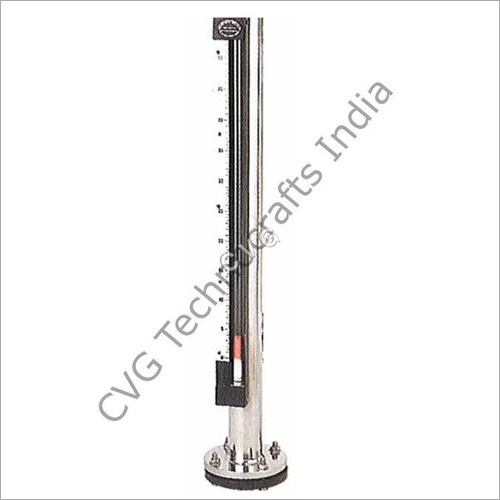

Top Mounted Magnetic Level Indicator

Top Mounted Magnetic Level Indicator
Top Mounted Magnetic Level Indicator
Send Inquiry
Product Code : TMLI-765
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 9500.00 - 15000.00 INR
Product Specifications
  • Product Type
  • Level Indicator
  • Operating Temperature
  • 225 Celsius (oC)
  • Working Temperature
  • 100 Celsius (oC)
  • Pressure Type
  • 25 Kg / cm2
  • Warranty
  • No
Product Description

Top Mounted Magnetic Level Indicator

Having huge technical expertise and rich experience in the domain, we have been successful in offering the best quality Top Mounted Magnetic Level Indicator. Under the supervision of our experienced professionals, offered indicator is manufactured with immense care using quality tested raw materials and cutting-edge technology according to the latest industry norms. This indicator is extensively used for measuring level of corrosive fluids. Can be availed from us at marginal prices, the offered Top Mounted Magnetic Level Indicator is rigorously tested on several parameters.


  • Finest finish

  • Light weight

  • User friendly design

  • Corrosion resistance

 Technical Specification:


Technical Specification
Liquids Liquids Stored in Underground or Over Ground Tanks
Density / Sp. Gravity Minimum 0.6
Design Temperature Up to 300 °C
Design Pressure Up to 10 Kg/cm
Viscosity Up to 250 CP
Tank Height (Range) Up to 3000 mm
Material of Wetted Parts MS / SS304 / SS304L / SS316 / SS316L / PTFE Lined / SS / PVC / PP
Connection Flanged to ASA / BS / DIN / Triclover
Minimum Nozzle size required 4 NB for Liquids Below 0.8 Density

Available Options as per Requirement are Follows:

  • Capsule Type
  • Rotoball Type
  • High & Low Level non Latching Switch
  • High & Low Level Latching Switch


  • Side mounted magnetic level indicator works simple magnetic principle used to get unique, most reliable & absolutely safe level indicator. It is mainly under used for most dangerous liquids even with under high pressure & high temperature.
  • The unit consists of all SS 316 parts. With inside of SS main chamber pipe, the SS magnetic float which moves up & down. Accordingly follows liquid variation in the tank.
  • The Float Magnet is operated by magnetically coupled to the Bicolour red & white outside chamber, which is mounted on front side of the main S.S. pipe.

Material of construction available:

  • Main chamber pipe: S.S. / P.P.
  • Float: SS 316 / P.P.
  • Outside casing pipe: Bicolour red & white magnetic roller
  • Scale: Alluminium black engraved / S.S. / Acrylic
  • Flange: S.S. / P.P.
  • Drain: ½” BSP drain valve provided on request
  • Pressure: 20 Kg/cm2 0r 50 Kg/cm2
  • Temperature: 130°C
  • Available Length: Maximum 3.5 meters
Trade Information
  • Payment Terms
  • Cheque, Cash in Advance (CID), Cash Advance (CA)
  • Supply Ability
  • 200 pieces Per Month
  • Delivery Time
  • 7 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Main Domestic Market
  • All India
